6-Person Large Spacious Sound Insulated Acoustic Booth For Group Team Conferences
PF001 / IP001
Skip to product information
REQUEST MORE INFO ▶
SKU
AQ-PD-PC001-012

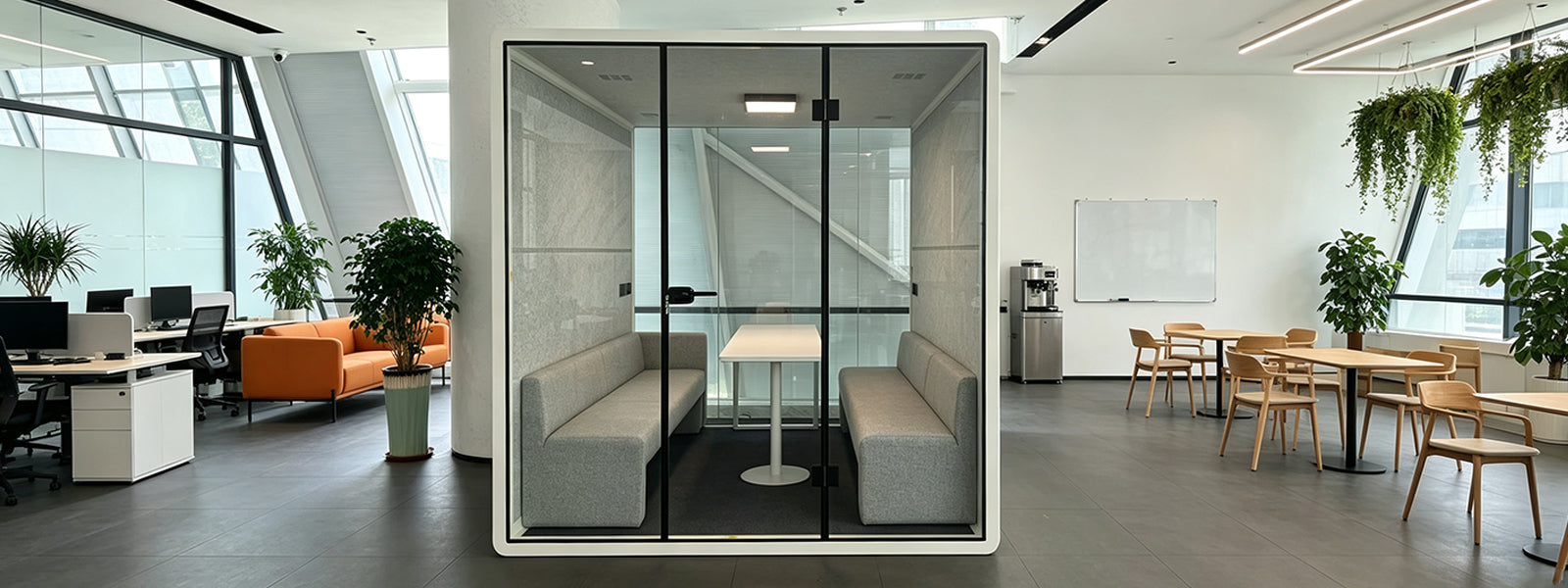

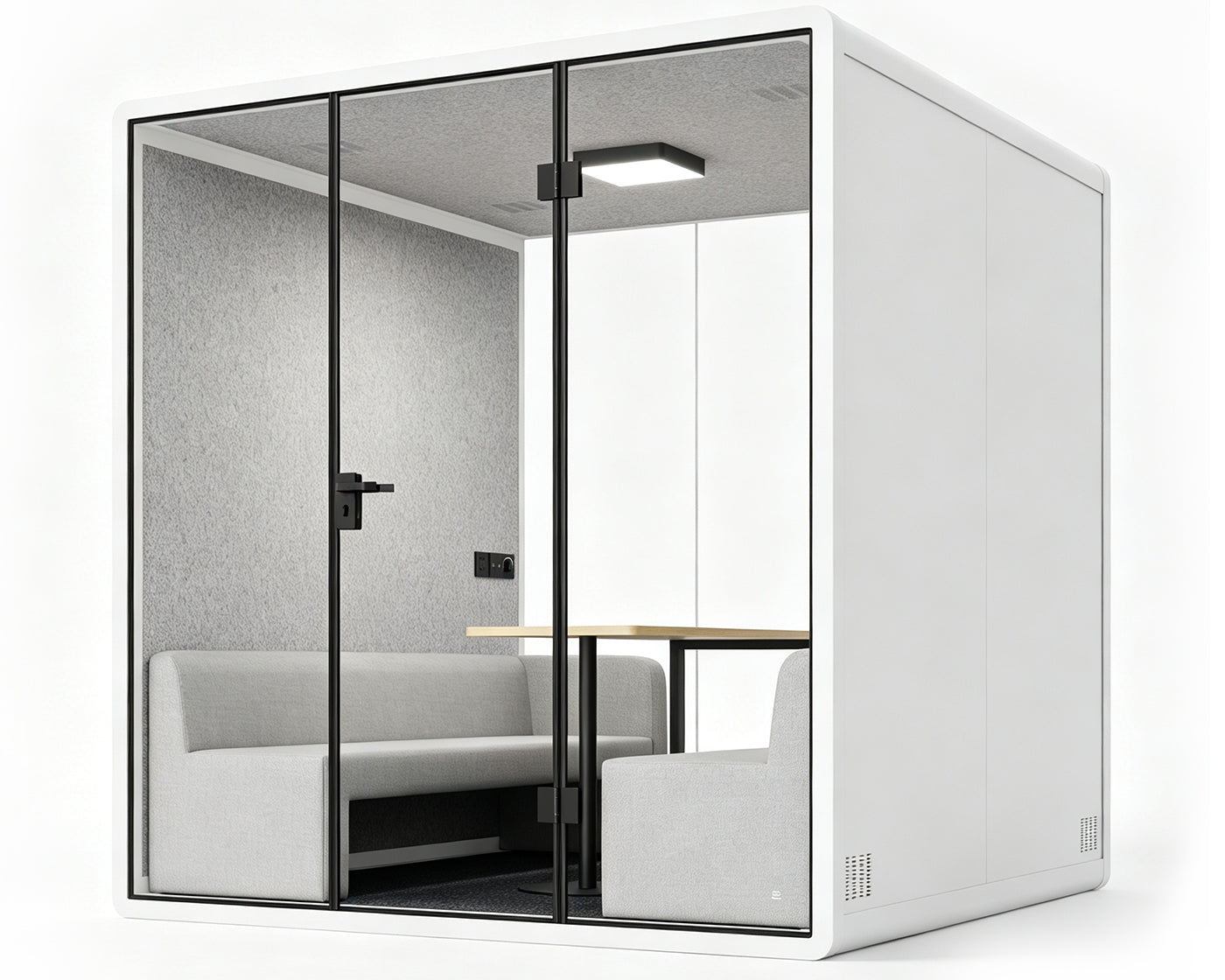

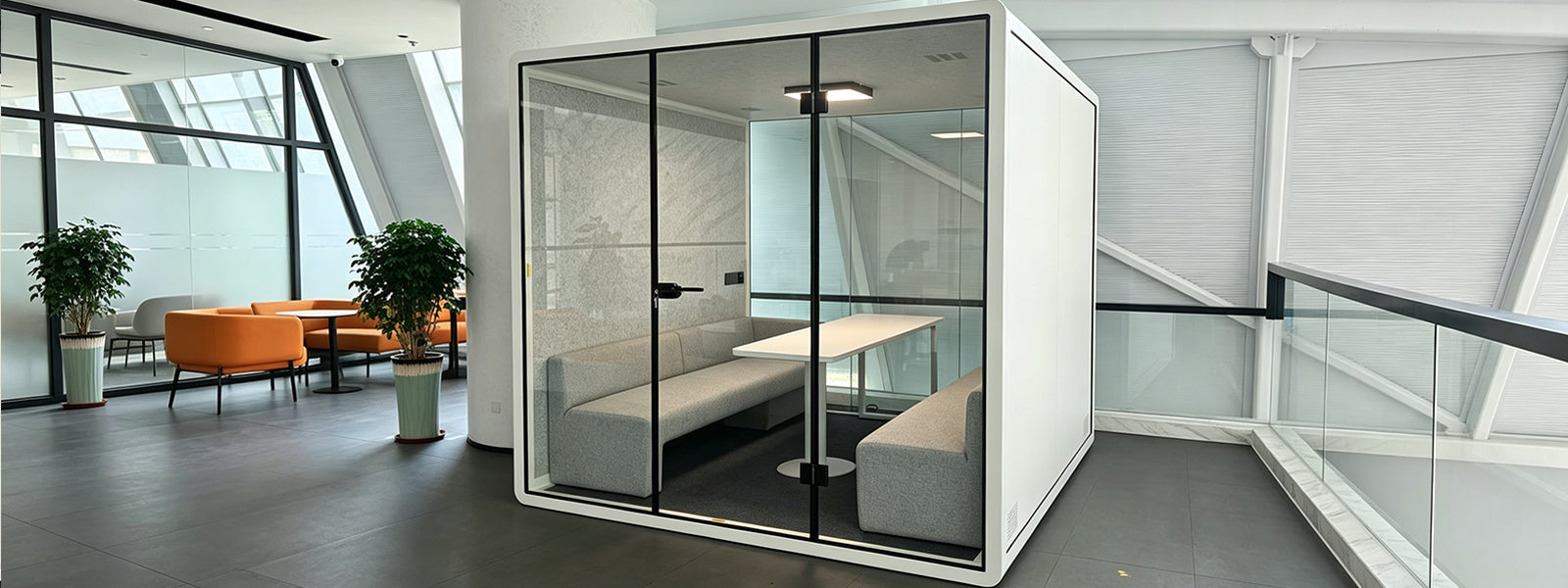

6-Person Large Spacious Sound Insulated Acoustic Booth For Group Team Conferences
This 6-person large acoustic meeting booth delivers 30dB noise reduction for open offices. It is equipped with low-noise ventilation, natural LED lighting and USB power supply. Extra spacious blank interior supports optional sofas and conference tables for group training, team conferences and collective interviews.
Specifications
| Specification | Details |
|---|---|
| SKU | AQ-PD-PC001-012 |
| External Size | 2172(W) × 2210(D) × 2288(H) mm |
| Internal Size | 2040(W) × 2100(D) × 2156(H) mm |
| Panel Structure | 38mm Double-Layer Aluminum Honeycomb Sound Insulation Panel |
| Noise Reduction | NRC 30dB(±5dB), Reverberation Time 0.25S |
| Ventilation | Low Noise 2-Minute Full Air Circulation Ventilation Fan |
| Lighting | 4000K 150LX LED Ceiling Light |
| Power Supply | 100-240V Dual Control Switches, 12V USB Port |
| Glass | 3C Certified Sound Insulation Tempered Glass |
| Accessories | Silent Door Lock, Nylon Floor Carpet, Foldable Desk & Stool |
Warranty and Installation Guide
This product comes with OSF's 12 Months Standard Warranty.
Looking for installation instructions? Visit our Installation Guides to access detailed assembly manuals, installation tips, and helpful resources for your OSF Education products.
Double-Layer Honeycomb Sound Insulation For Private Space
38mm double-layer aluminum honeycomb sound insulation panel achieves 30dB noise reduction, matched with acoustic felt and soundproof tempered glass door to block external office noise. Silent door lock avoids opening & closing disturbance, ideal for confidential calls and private meetings.
Low-Noise Ventilation System For Constant Fresh Air
Multi-layer sound barrier ventilation fan renews full air inside the booth every 2 minutes, greatly lowering fan operation noise. Stable air circulation eliminates stuffiness even during long-time concentrated work.
Integrated Smart Electric & Lighting System
Equipped with 4000K 150LX natural LED ceiling light, 100-240V wide voltage dual-control power system and 12V USB charging port. Independent switches separately control light and exhaust fan for flexible use.
Blank Interior Layout, Furniture Optional Addition
Spacious blank internal space without standard built-in desk and stool. Foldable desks, high stools and other furniture are optional extra accessories to match different usage scenarios.
Slideshow
Acoustic Pods Buying Guide & FAQs
How effective is the sound insulation of this office booth?
Adopting 38mm double-layer aluminum honeycomb panels, it achieves 30dB noise reduction to block surrounding office noise and guarantee privacy.
Will the booth feel stuffy during long-time use？
Low-noise ventilation fan fully renews internal air every 2 minutes to maintain smooth air circulation without stuffiness.
Does the booth have light and charging functions?
Built-in 4000K LED ceiling light with separate control switches, plus 12V USB port for charging phones and tablets.
Is the glass door safe and quiet to open?
The door uses 3C certified sound insulation tempered glass with silent lock, no loud collision noise while opening and closing.
What scenes is this acoustic pod suitable for?
Open offices, co-working spaces, lobbies, libraries and training centers for private calls, interviews, video conferences and focused work.
